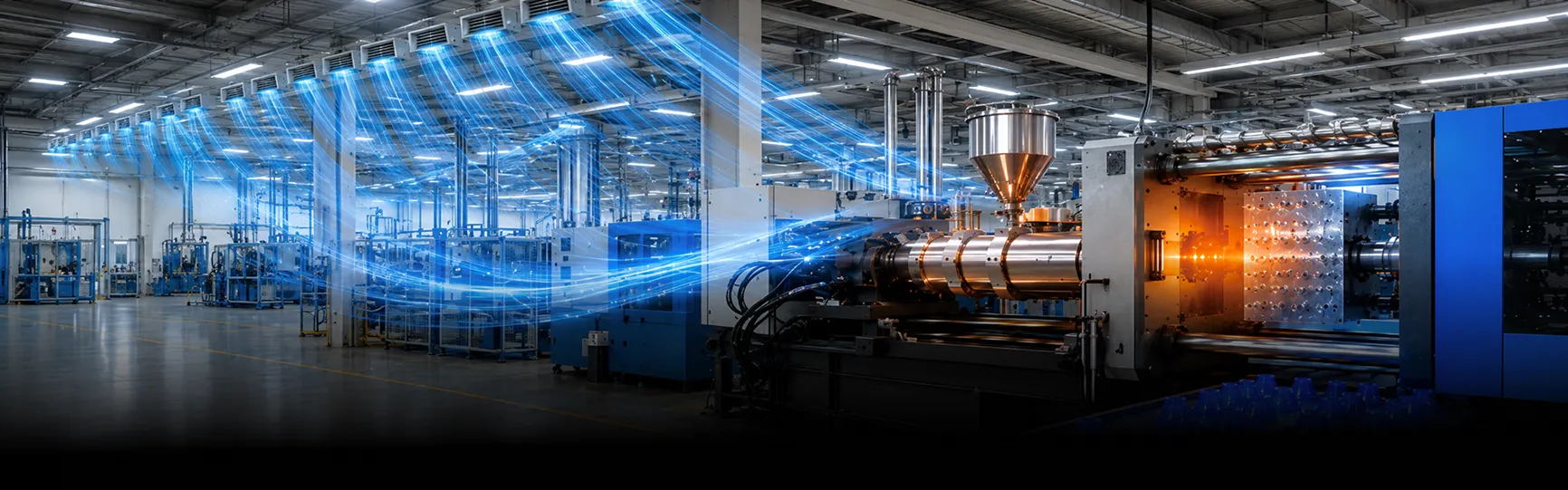

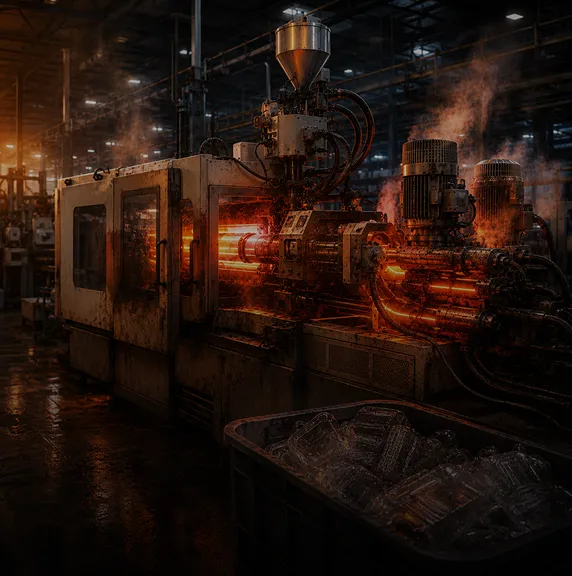

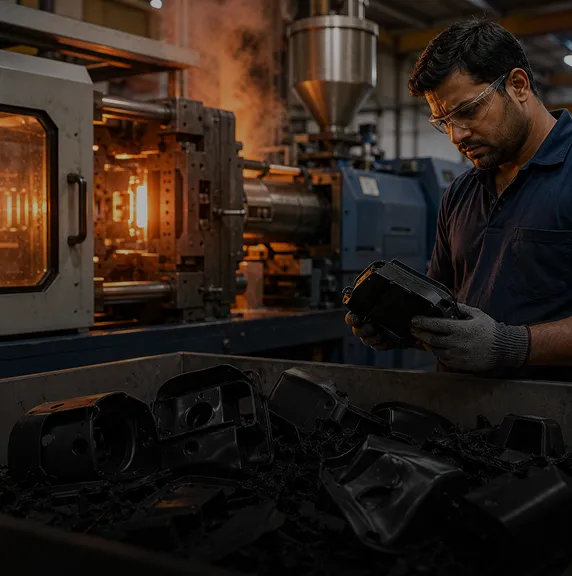

Extreme radiant heat from barrel heaters and hydraulic packs degrades machine oil and overheats motors. This triggers frequent thermal tripping, costly maintenance downtime, and sluggish cycle times that directly drive up scrap rates

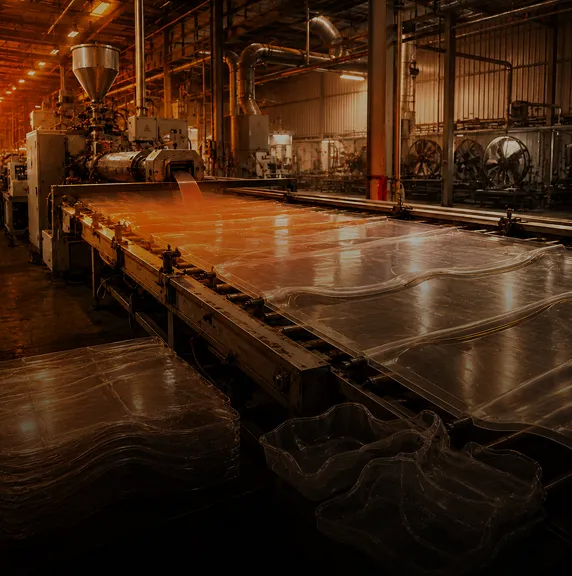

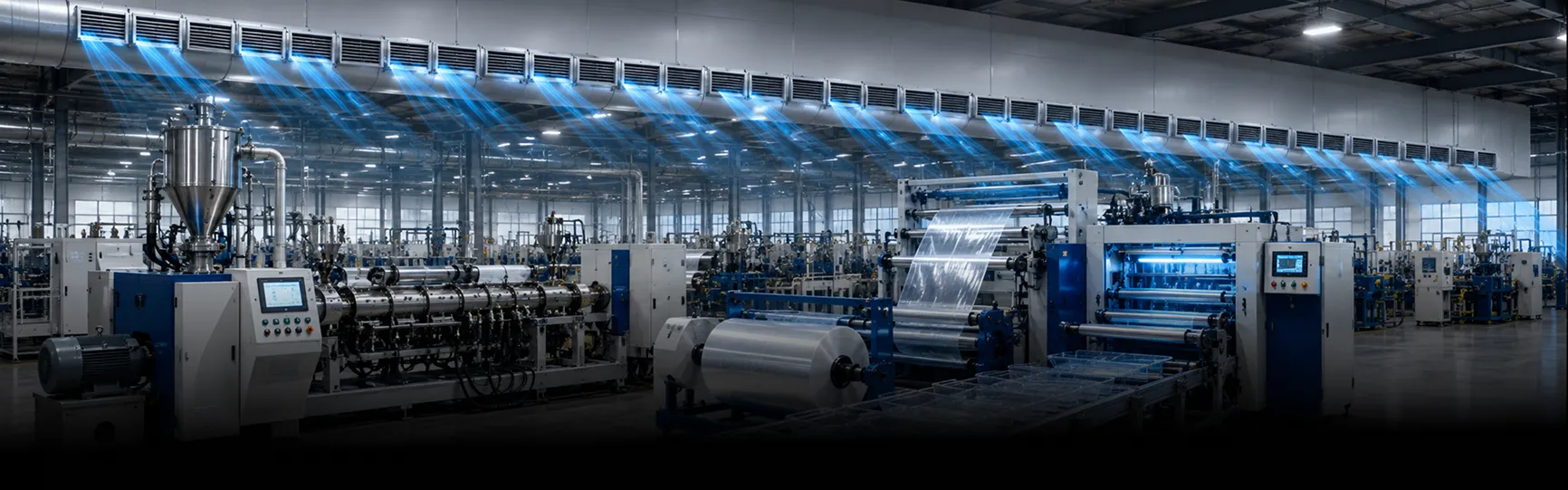

Uneven ambient temperatures across the extrusion line lead to irregular plastic cooling. This structural variation causes product warping, shrinkage, and dimensional drift, leading to expensive material re-runs.

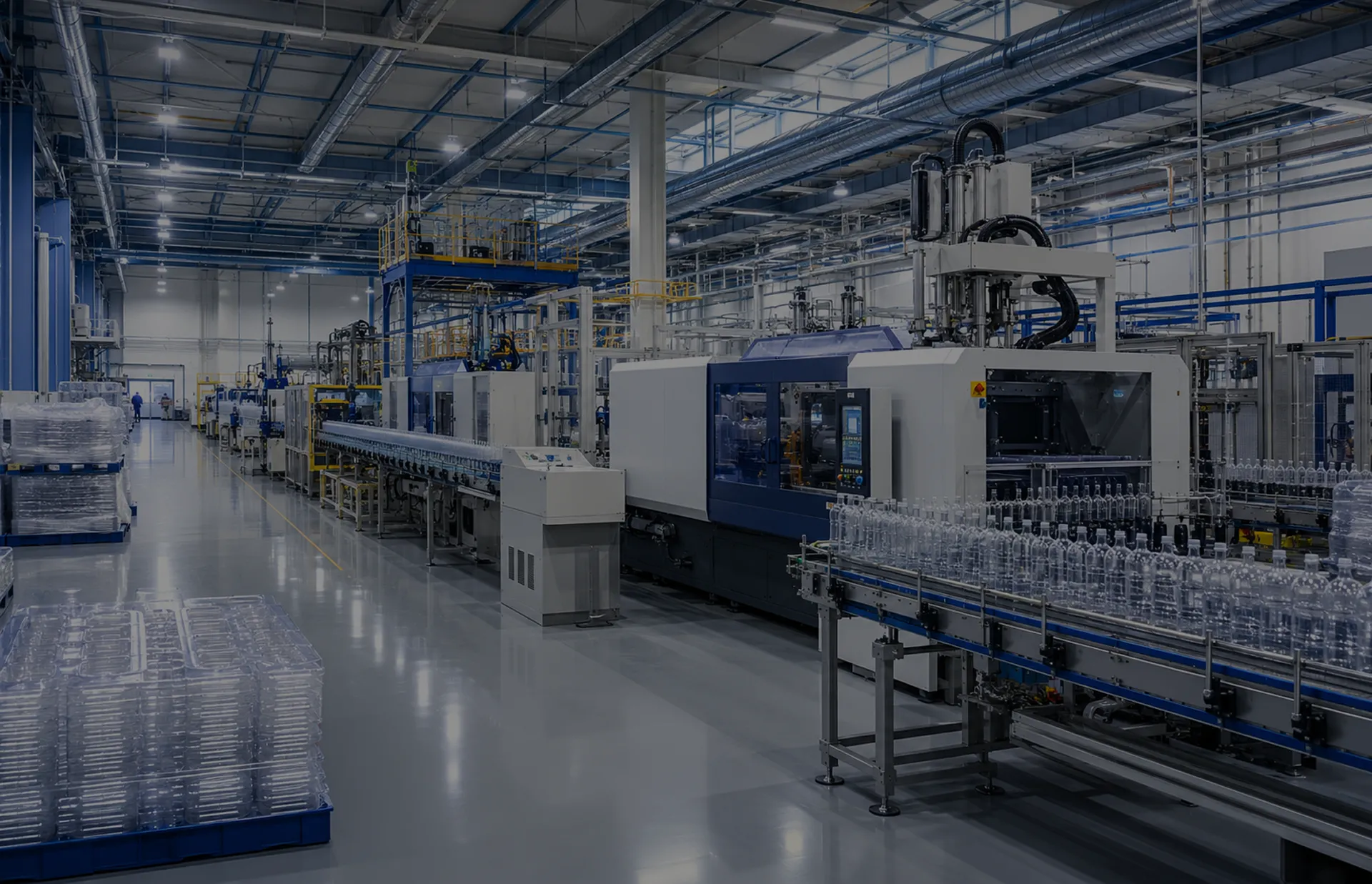

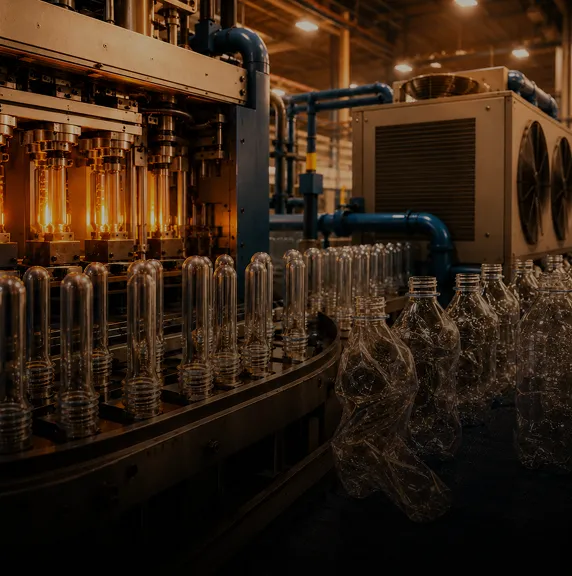

High ambient temperatures interfere with the precise cooling parameters required for PET. Without rapid, stable cooling, preforms deform and bottles fail cosmetic and structural quality checks, leading to unpredictable daily yields.

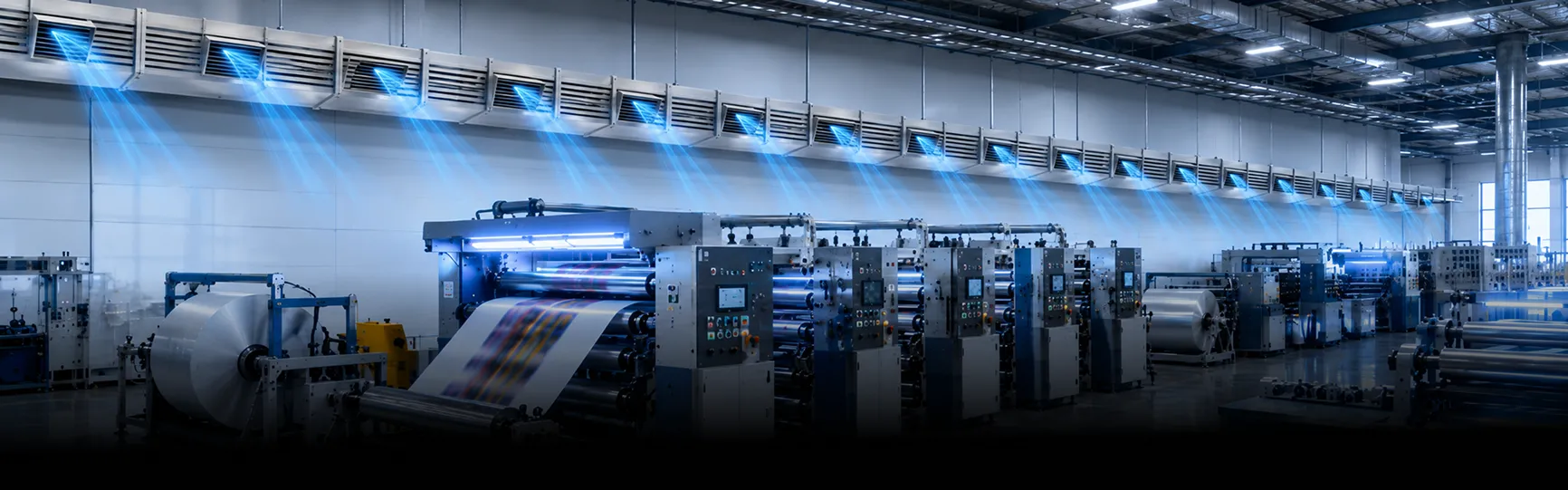

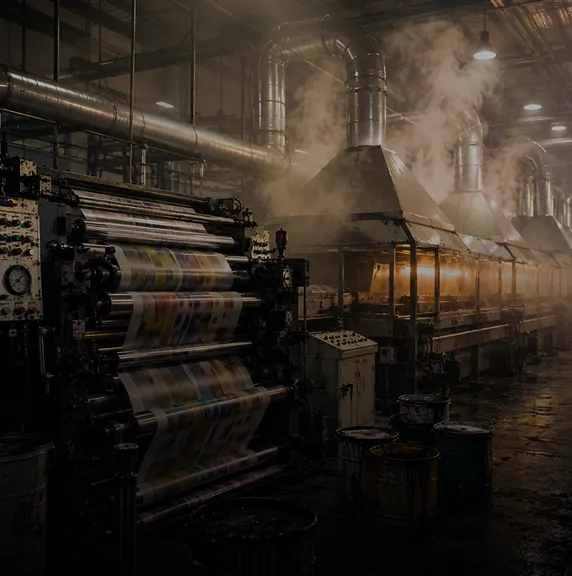

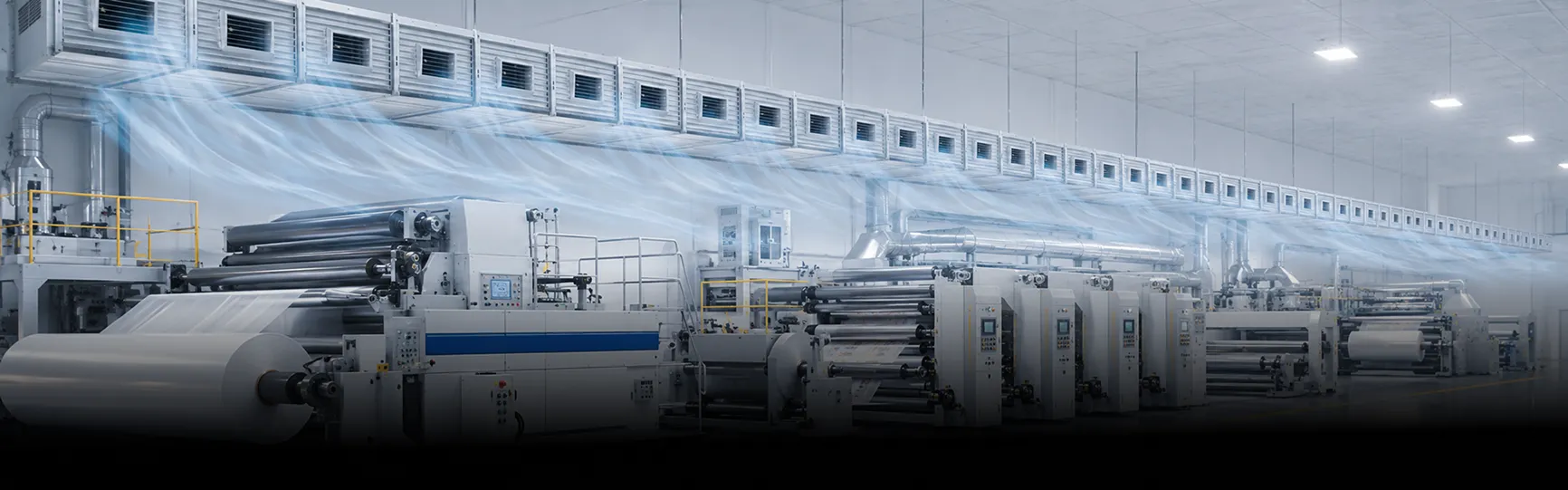

Lamination tunnels and drying hoods release massive thermal loads, while printing solvents trap heavy Volatile Organic Compounds (VOCs) on the shopfloor. This stagnant, toxic air causes ink drying inconsistencies, resulting in printing defects and a hazardous breathing environment

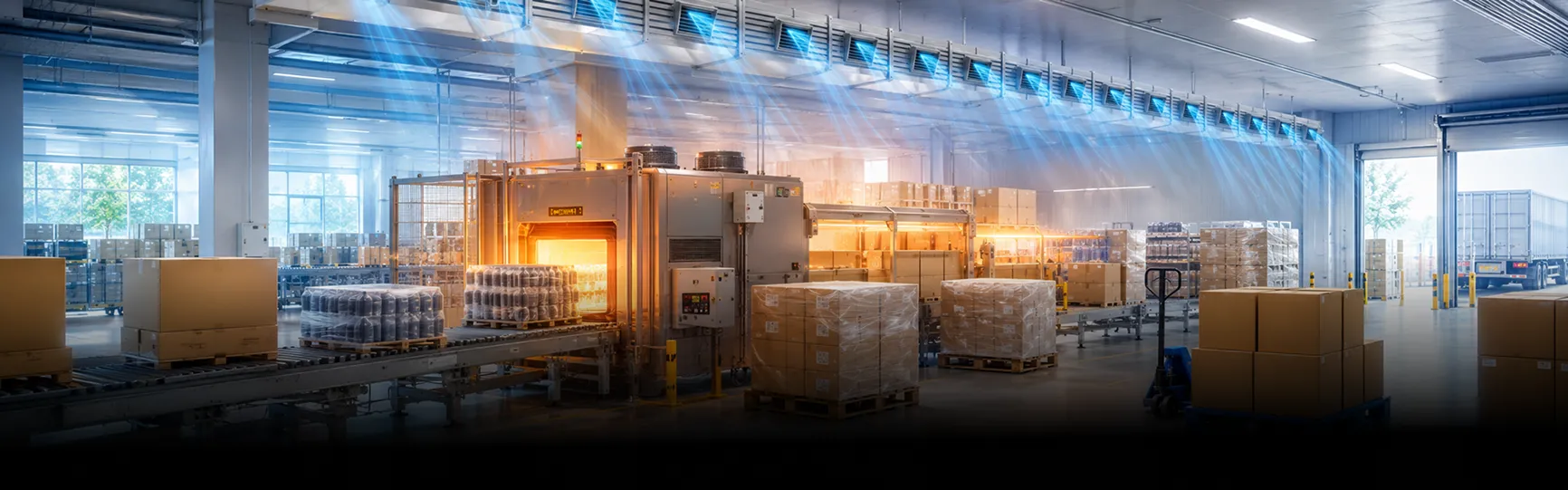

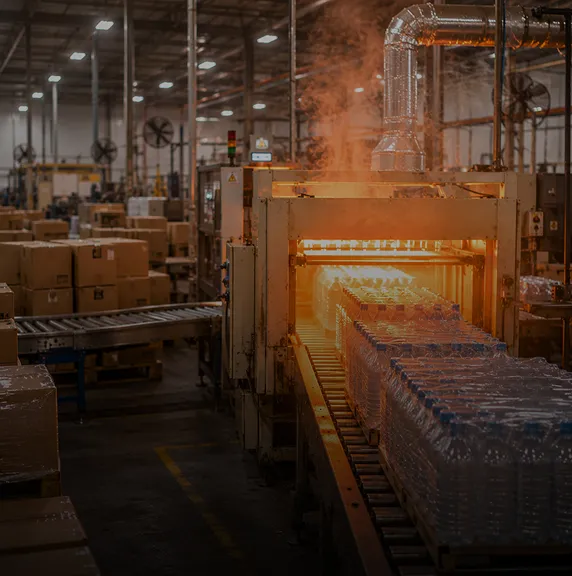

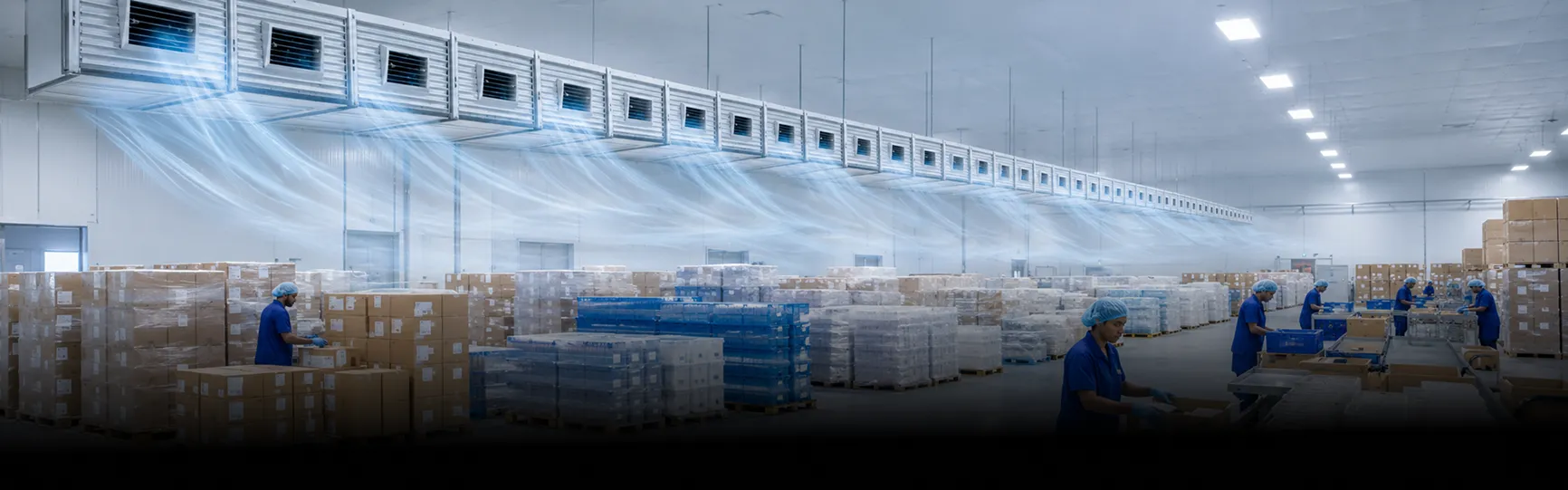

Secondary heat from shrink-wrapping tunnels creates unbearable localized hot spots. Operators working in these stagnant packing areas experience rapid physical exhaustion, leading to slower packing speeds, packing errors, and high absenteeism.
Energy cost ↓ 80-90%
Operational cost ↓ ₹2/sq.ft/month
Productivity ↑ 10-20%
Cooling coverage ↑ 2500 sq.ft/unit
ROI < 12 months

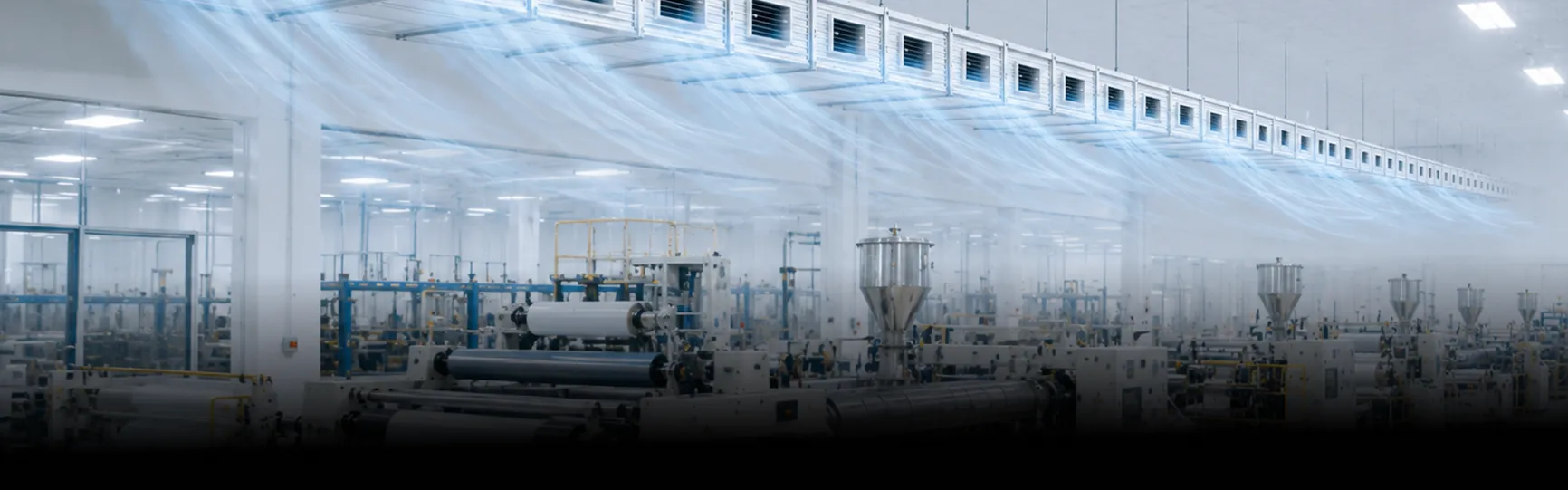

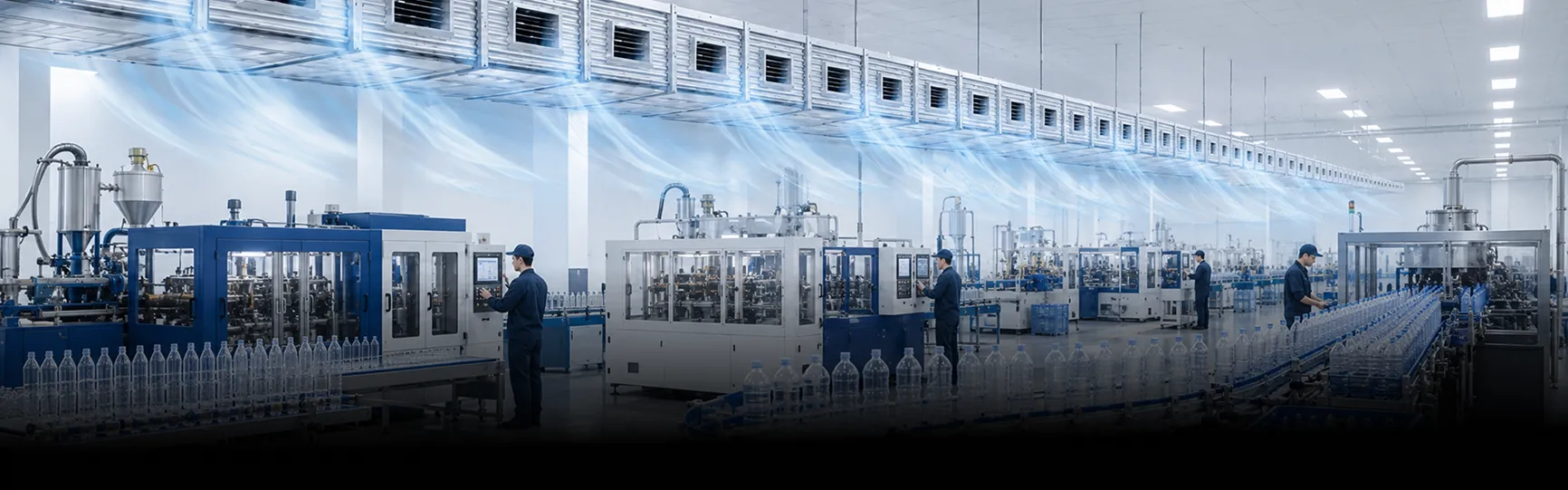

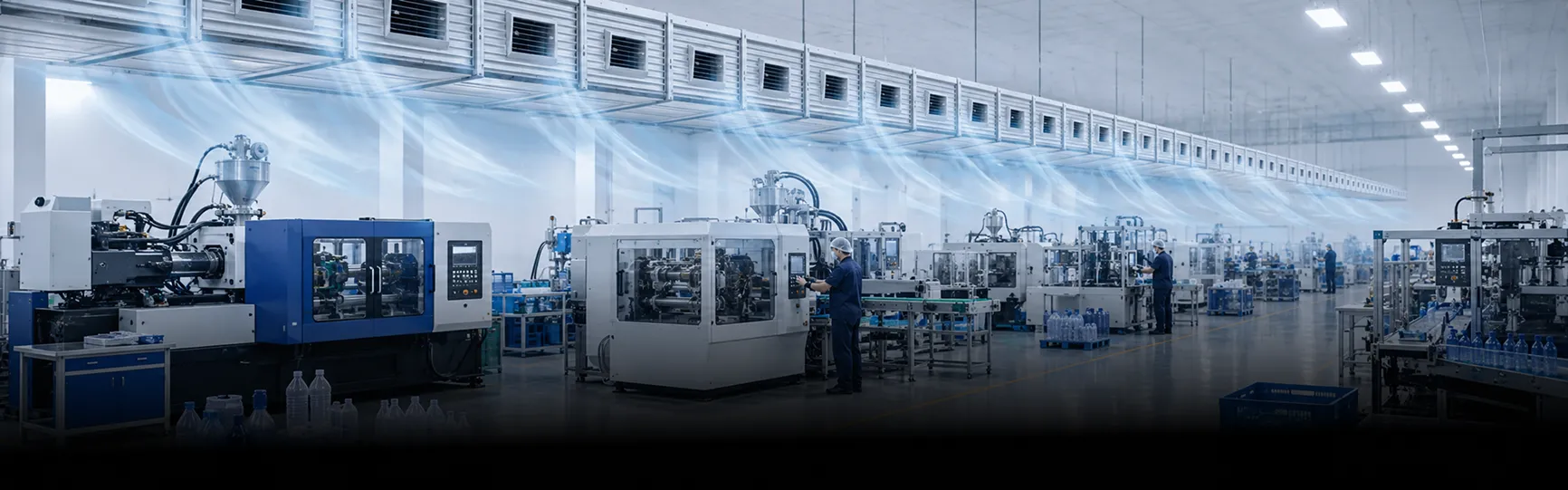

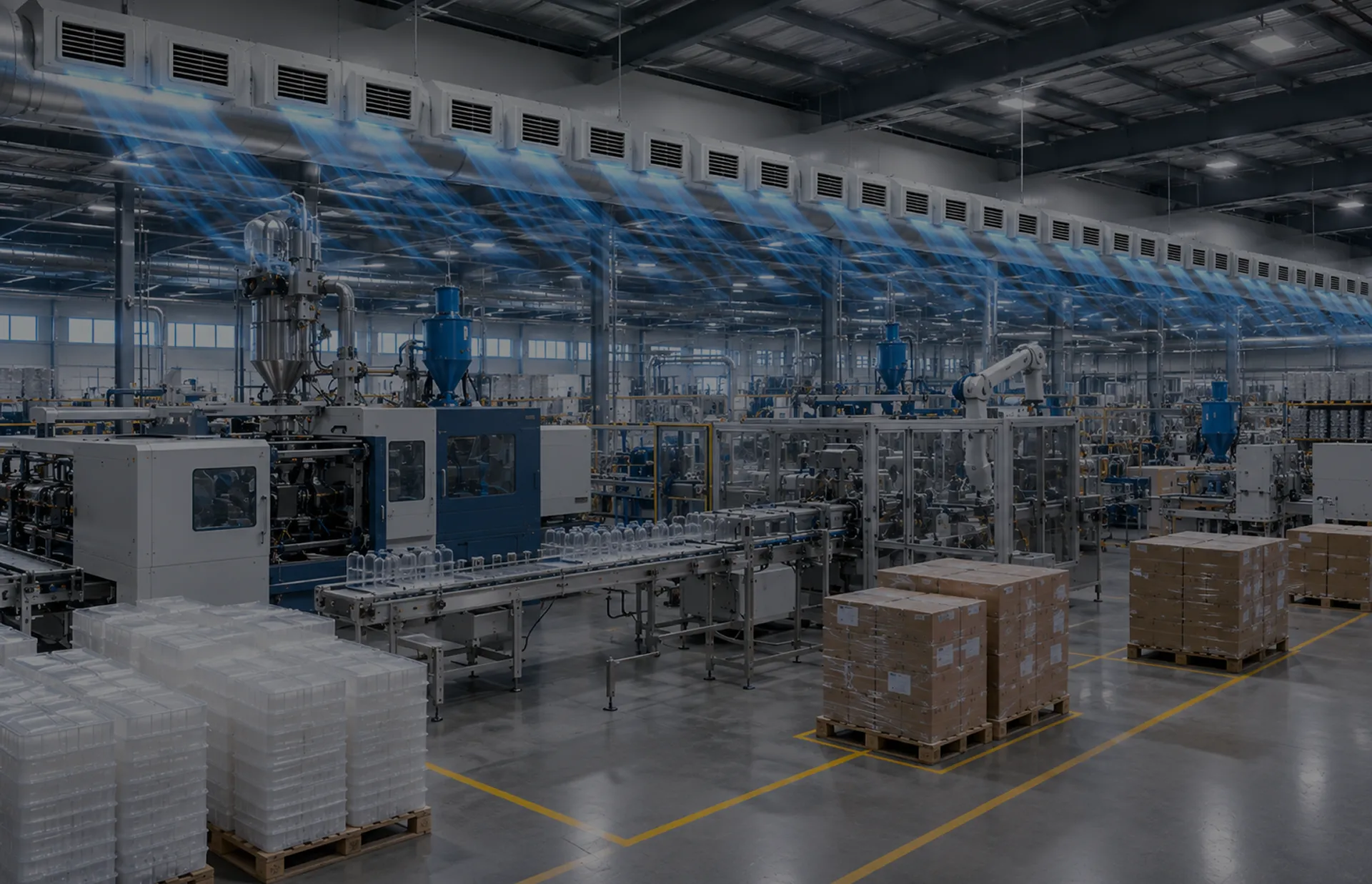

Maintaining thermal stability on the packaging shop floor isn't just about crew comfort—it directly impacts plastic forming accuracy, machine cycle times, and scrap rates. Symphony’s Large Space Venti-Cooling mitigates extreme localized heat from barrels and dryers while continuously purging volatile solvent fumes, proving that natural, high-volume displacement ventilation is the smartest choice for high-yield moulding plants.
2 side discharge option (Top & Bottom)
Air Delivery: 25,000 CMH.
Cooling Area: Up to 1600 sq. ft.
Efficiency: 80% cooling efficiency with honeycomb pads
Capacity: 70L (Top), 40L (Down) tank
Fan Power: 1.5 kW motor, 620 mm fan diameter
2 side discharge option (Top & Bottom)
Air Delivery: 40,000 CMH.
Cooling Area: Up to 2500 sq. ft.
Efficiency: Four side cooling pads for superior cooling
Capacity: 40L (Top), 40L (Down) tank
Fan Power: 3 kW motor, 710 mm fan diameter
Side discharge option
Air Delivery: 40,000 CMH.
Efficiency: 84% evaporative efficiency with honeycomb pads
Capacity: 80L tank
Motor Power: 7.5 kW motor
Side discharge option
Air Delivery: 60,000 CMH.
Efficiency: 84% evaporative efficiency with honeycomb pads
Capacity: 100L tank
Motor Power: 15 kW motor
3 side discharge option (Top, Bottom & Side)
Air Delivery: 11,000 CMH.
Cooling Area: Up to 700 sq. ft.
Efficiency: 75% cooling efficiency with honeycomb pads
Capacity: 50L tank (Top & Side), 30L tank (Bottom)
Fan Power: 0.45 kW motor, 425 mm fan diameter
2 side discharge option (Top & Bottom)
Air Delivery: 20,000 CMH.
Cooling Area: Up to 1200 sq. ft.
Efficiency: 80% cooling efficiency with honeycomb pads
Capacity: 70L tank (Top), 40L tank (Down)
Fan Power: 1.1 kW motor, 620 mm fan diameter
Air Delivery: 20,000 CMH.
Cooling Area: 1500 sq. ft.
Efficiency: 80% cooling efficiency with honeycomb pads
Capacity: 70L tank
Motor Power: 1.1 kW motor, 620 mm fan diameter
Portability: Heavy duty lockable wheels for portability
Side discharge option
Air Delivery: 22,000 CMH.
Cooling Area: Up to 1300 sq. ft.
Efficiency: 80% cooling efficiency with honeycomb pads
Capacity: 70L tank
Motor Power: 1.1 kW motor, 620 mm fan diameter
Air Delivery: 8500 m³/hr*
Air throw distance: Up to 10m
Efficiency: Three side cooling pads for superior cooling
Capacity: 200L tank
Air Delivery: 8500 m³/hr*
Air throw distance: Up to 10m
Efficiency: Three side cooling pads for superior cooling
Capacity: 125L tank
Air Delivery: 17,000 m³/hr*
Air throw distance: Up to 10m
Efficiency: Three side cooling pads for superior cooling
Capacity: 125L tank
Air Delivery: 18,000 m³/hr*
Air throw distance: Up to 11m
Efficiency:Three side cooling pads for superior cooling
Capacity: 200L tank
Air Delivery: 18,000 m³/hr*
Air throw distance: Up to 11m
Efficiency: Three side cooling pads for superior cooling
Capacity: 100L tank
.svg)
Yes. It rapidly displaces the massive radiant heat generated by barrel heaters, dryers, and hydraulic packs, lowering localized temperatures to stabilize product cycle times.
